수질분석기

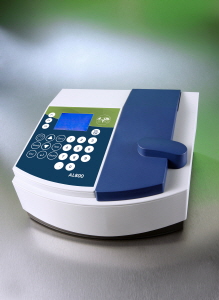

정수/폐수/오수/일반 (AL 800)

특징 및 소개내용

특징 및 소개내용
- Spectrophotometer for water and waste water testing 330 - 900 nm
- 약 100여가지의 수질 분석 가능
- 분석항목은 전화 문의 바랍니다.
Specifications
Wavelength range 330 to 900 nm
PhotometrIc range -0.3 to 2.5 Abs
Spectral bandwidht 10nm
Wavelenght accuracy ± 2 nm
Wavelenght reproducibility ± 1 nm
Light source Pre-adjusted tungsten halogen lamp
Monochromator Holographic grating
Detector Silicon photodiode
Multifunctlonal sample chamber for Round vials 24 and 16nmØ,
Rectangular cells 10-50nm
Display Backlit LCD graphic display
Language options Geman, English,French,Italian, Spanish and Portugese
Storage capacity 1000 test data sets
Serlal Interface RS232
Power supply using external power pack Input voltage 100 - 240V~1.0A 50 -60 Hz
Output voltage : 12V....30W

Dimensions (L×W×H)

270×275×150mm

Weight approx. 3.2kg
CE EN 50082-1 Standard-1992 Edition-Immunity Generic Standard
EN 55022 Standard Class-1994 Edition Emission Generic Standard
EN 5081-1 Standard 1992 Edition-Emission Generic Standard
